Basic Info.

• Item Fit: Bonfiglioli 700C Travel Drives
• Item Condition: New
• Item Weight: 36-45 ton
• Item Maker: FLundercarriage
• Place of Origin: Quanzhou

Delivery Info.

• Inventory Class: Standing
• Packaging: Carton/Pallet
• ETD: 24-72 Hours
• ETA: 5-30 Days

Overview

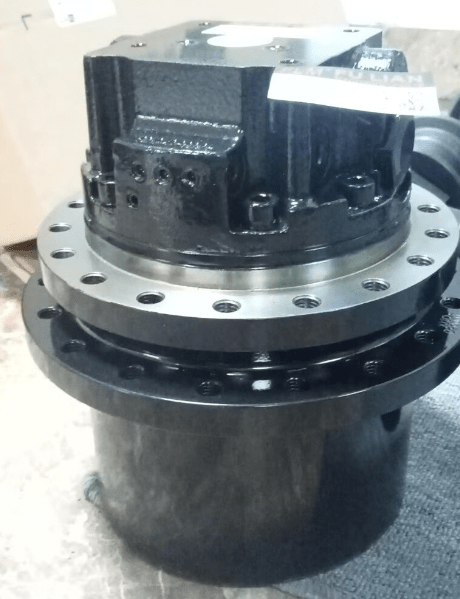

The 700C series Travel Drives are essential components designed to work seamlessly with A6VE series Hydraulic Motors in crawler excavators and other track-driven machines. These drives feature integration with Rexroth A6VE cartridge axial piston motors equipped with failsafe parking brakes.

Model Specifications

• Model: 715 C3 B
• Max Output Torque (Nm): 81500
• Max Working Pressure (Mpa): 28.5
• Max Output Speed (r/min): 30

Key Features

• High-efficiency A6VE Swash-plate Piston Motor.
• Widely used as a standard motor.
• Robust design with high torque and load capacities.
• Compact design for efficient space utilization.
• Rotating output flange with large Pitch Circle Diameter (PCD) suitable for sprocket.
• Optional Freewheel for easy transportation.

Specifications

• Motor Displacement: 100/160 cc/r
• Working Pressure: 28.5 Mpa
• Speed Control Pressure: 2~7 Mpa
• Ratio Options: 129
• Max. Torque of Gearbox: 81000 N.m
• Max. Speed of Gearbox: 30 rpm

Connection Details

• Frame Connection Diameter: 420mm
• Frame Flange Bolt: 24-M20
• Frame Flange P.C.D.: 460mm
• Sprocket Connection Diameter: 460mm
• Sprocket Flange Bolt: 24-M20
• Sprocket Flange P.C.D.: 510mm
• Flange Distance: 129mm
• Approximate Weight: 520kg

Summary

The 715 C3 B series Track Drive shares similar dimensions with renowned brands like Nachi, KYB, Eaton, and others, making it a versatile choice for OEM and aftermarket applications, replacing various Hydraulic Final Drive Motors. We offer a comprehensive range from 700C2K to 715C3B, ensuring compatibility with most excavator brands in the market.
